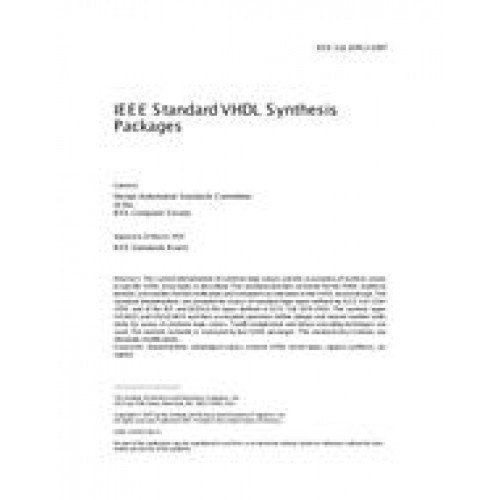

New IEEE Standard - Superseded.The current interpretation of common logic values and the association of numeric values to specific VHDL array types is described. This standard provides semantic for the VHDL synthesis domain, and enables formal verification and simulation acceleration in the VHDL based design. The standard interpretations are provided for values of standard logic types defined by IEEE Std 1164-1993, and of the BIT and BOOLEAN types defined in IEEE Std 1076-1993. The numeric types SIGNED and UNSIGNED and their associated operators define integer and natural number arithmetic for arrays of common logic values. Twos complement and binary encoding techniques are used. The numeric semantic is conveyed by two VHDL packages. This standard also contains any allowable modifications.
PDF
All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.
Multi-User Access
After purchasing, you have the ability to assign each license to a specific user.
Printable
At any time, you are permitted to make printed copies for your and your members' reference use.
