IEEE 1505.1-2019

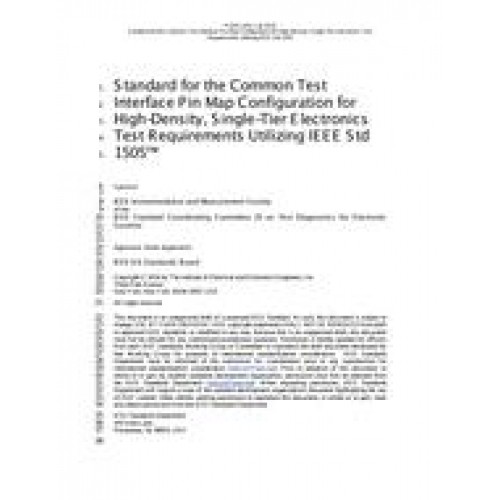

- IEEE Approved Draft Standard for the Common Test Interface Pin Map Configuration for High-Density, Single-Tier Electronics Test
- standard by IEEE, 09/11/2019
- Category: IEEE
$150.00
$75.00
Revision Standard - Active.This standard represents an extension to the IEEE 1505 receiver fixture interface (RFI) standard specification. Particular emphasis is placed on defining within the IEEE 1505 RFI standard a more specific set of performance requirements that employ a common scalable: (a) pin map configuration; (b) specific connector modules; (c) respective contacts; (d) recommended switching implementation; and (e) legacy automatic test equipment (ATE) transitional devices. This is intentionally done to standardize the footprint and assure mechanical and electrical interoperability between past and future automatic test systems (ATS).
PDF
All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.
Multi-User Access
After purchasing, you have the ability to assign each license to a specific user.
Printable
At any time, you are permitted to make printed copies for your and your members' reference use.
