• IEEE 1596.3-1996

IEEE 1596.3-1996

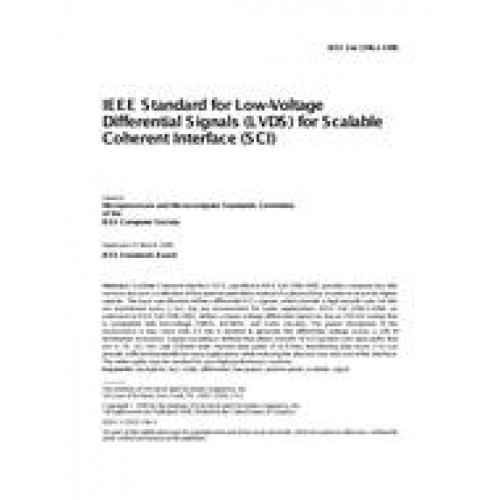

  • IEEE Standard for Low-Voltage Differential Signals (LVDS) for Scalable Coherent Interface (SCI)
  • standard by IEEE, 07/31/1996
  • Category: IEEE

$134.00 $67.00

New IEEE Standard - Inactive-Withdrawn.Scalable Coherent Interface (SCI), specified in IEEE Std 1596-1992, provides computer-bus-like services but uses a collection of fast point-to-point links instead of a physical bus in order to reach far higher speeds. The base specification defines differential ECL signals, which provide a high transfer rate (16 bits are transferred every 2 ns), but are inconvenient for some applications. IEEE Std 1596.3-1996, an extension to IEEE Std 1596-1992, defines a lower-voltage differential signal (as low as 250 mV swing) that is compatible with low-voltage CMOS, BiCMOS, and GaAs circuitry. The power dissipation of the transceivers is low, since only 2.5 mA is needed to generate this differential voltage across a 100 W termination resistance. Signal encoding is defined that allows transfer of SCI packets over data paths that are 4-, 8-, 32-, 64-, and 128-bits wide. Narrow data paths (4 to 8 bits) transferring data every 2 ns can provide sufficient bandwidth for many applications while reducing the physical size and cost of the interface. The wider paths may be needed for very-high-performance systems.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
