• IEEE 91/91a-1984

IEEE 91/91a-1984

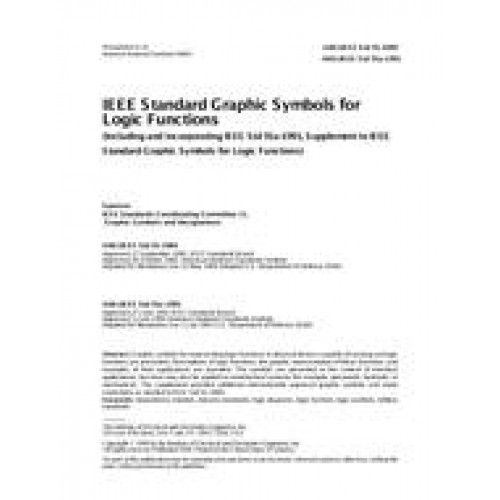

  • IEEE Standard Graphic Symbols for Logic Functions (Including and incorporating IEEE Std 91a-1991, Supplement to IEEE Standard Gr
  • standard by IEEE, 07/13/1984
  • Category: IEEE

$207.00 $104.00

New IEEE Standard - Active.Graphic symbols for representing logic functions or physical devices capable of carrying out logic functions are presented. Descriptions of logic functions, the graphic representation of these functions, and examples of their applications are provided. The symbols are presented in the context of electrical applications, but most may also be applied to nonelectrical systems (for example, pneumatic, hydraulic, or mechanical). The supplement provided additional internationally approved graphic symbols and made corrections as needed to IEEE Std 91-1984.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
