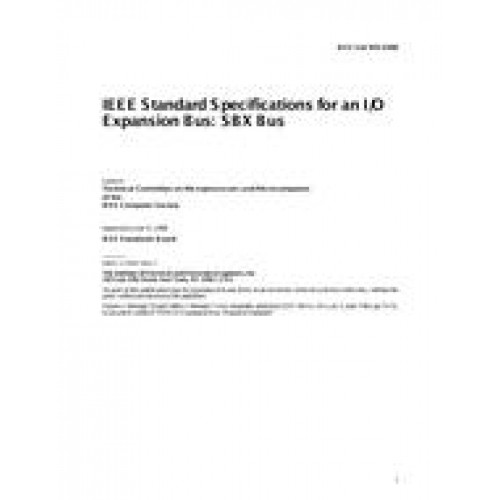

IEEE 959-1988
- IEEE Standard Specifications for an I/O Expansion Bus: SBX Bus
- standard by IEEE, 12/21/1988
- Category: IEEE
$174.00
$87.00
New IEEE Standard - Inactive-Withdrawn.An I/O expansion bus for microcomputers that is independent of processor or board type is specified. Each expansion interface supports up to 16 8-bit I/O ports directly. Enhanced addressing capability is available using slave processors or FIFO devices. In addition, each expansion interface may optionally support a DMA channel capable of data rates up to 2 16-bit Mwords/sec. These features are supported for both 8- and 16-bit data paths. The specification has been prepared for those users who intend to design or evaluate products that will be compatible with the bus. For this purpose, functional, electrical, and mechanical specification is covered in detail. The intent of the specification is to guarantee compatibility between baseboards and expansion modules while not restricting the actual designs any more than necessary.
PDF
All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.
Multi-User Access
After purchasing, you have the ability to assign each license to a specific user.
Printable
At any time, you are permitted to make printed copies for your and your members' reference use.
