• IEEE PC57.21

IEEE PC57.21

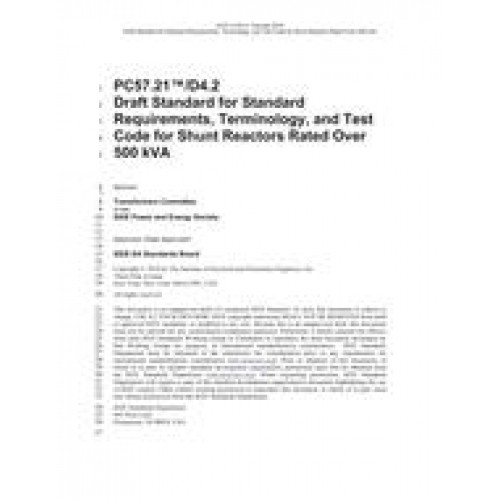

  • IEEE Draft Standard Requirements, Terminology, and Test Code for Shunt Reactors Rated Over 500 kVA
  • standard by IEEE,
  • Category: IEEE

$150.00 $75.00

Revision Standard - Active - Draft.All liquid-immersed or dry-type, single-phase or three-phase, outdoor or indoor shunt reactors rated over 500 kVA are covered. Terminology and general requirements are stated, and the basis for rating shunt reactors is set forth. Routine, design, and other tests are described, and methods for performing them are given. Losses and impedance, temperature rise, dielectric tests, and insulation levels are covered. Construction requirements for liquid-immersed reactors and construction and installation requirements for dry-type reactors are presented. This standard alsocovers thyristor-controlled shunt reactors used in static var compensators.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
