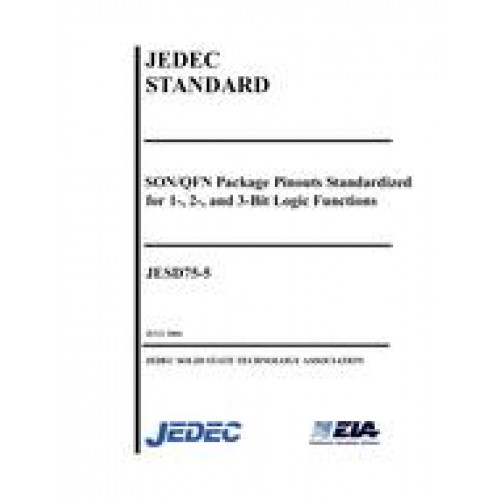

  • SON/QFN PACKAGE PINOUTS STANDARDIZED FOR 1-, 2-, AND 3-BIT LOGIC FUNCTIONS
  • standard by JEDEC Solid State Technology Association, 07/01/2004
  • Category: JEDEC

$53.00 $27.00

This standard defines device pinout for 1-, 2- and 3-bit wide logic functions. This pinout specifically applies to the conversion of Dual-Inline-Packaged (DIP) 1-, 2- and 3-bit logic devices to SON/QFN packaged 1-, 2- and 3-bit logic devices. The purpose of this document is to provide a pinout standard for 1-, 2- and 3-bit logic devices offered in 5-, 6- or 8-land SON/QFN packages for uniformity, multiplicity of sources, elimination of confusion, ease of device specification, and ease of use.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
