• JEDEC JESD75-6

JEDEC JESD75-6

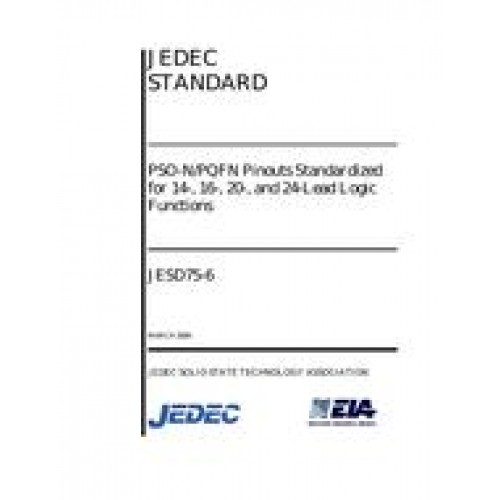

  • PSO-N/PQFN PINOUTS STANDARDIZED FOR 14-, 16-, 20-, AND 24-LEAD LOGIC FUNCTIONS
  • standard by JEDEC Solid State Technology Association, 03/01/2006
  • Category: JEDEC

$53.00 $27.00

This standard defines device pinouts for 14-, 16-, 20-, and 24-lead logic functions. This pinout standard specifically applies to the conversion of DIP-packaged logic devices to PSO-N/PQFN packages logic devices. The purpose of this standard is to provide a pinout standard for 14-, 16-, 20-, and 24-lead logic devices offered in 14-, 16-, 20-, and 24-lead PSO-N/PQFN packages for uniformity, multiplicity of sources, elimination of confusion, ease of device specification, and ease of use.
