• PIP ELEGL02

PIP ELEGL02

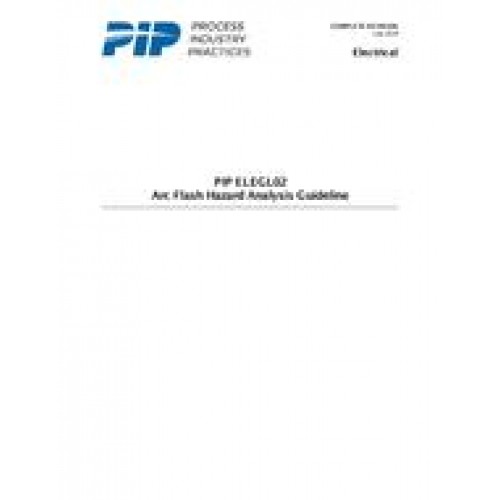

  • Arc Flash Hazard Analysis Guideline [Complete Revision]
  • standard by Process Industry Practices, 07/01/2018
  • Category: PIP

$100.00 $50.00

This Practice provides information for performing an Arc Flash Hazard Analysis as required by NFPA 70E and IEEE C2. It provides guidance on the determination of the arc flash boundary, the incident energy at the working distance, and arc flash pressure. This information can be used to mitigate the possibility of an arc flash event through engineering methods or in the proper selection of personal protective equipment (PPE). Arc flash risk assessment, as required by NFPA 70E, is outside the scope of this document.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
