• PIP ELIMTD00

PIP ELIMTD00

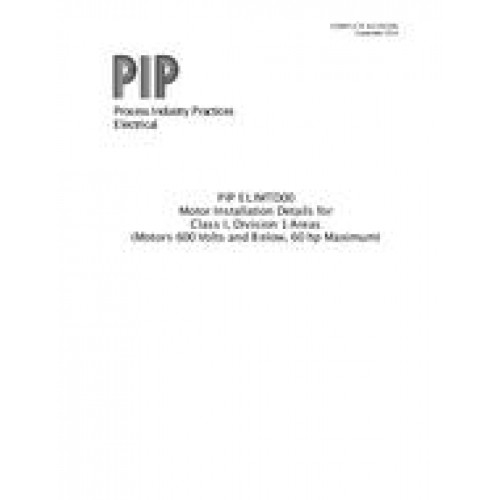

  • Motor Installation Details for Class I, Division 1 Areas [Complete Revision]
  • standard by Process Industry Practices, 09/01/2014
  • Category: PIP

$300.00 $150.00

This Practice describes the requirements for installing circuits for power and control to AC squirrel cage induction motors (600 volts and below, 60 hp maximum), located in Class I, Division 1 areas. This Practice tabularizes the basic assumptions used in developing these details and provides guidelines for their application. These details were originally published in ELIMT000 which was withdrawn May 2008.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
