• PIP ELSHT01

PIP ELSHT01

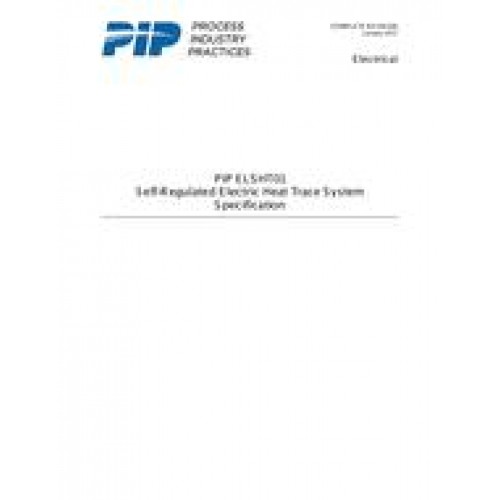

  • Self-Regulated Electric Heat Trace System Specification [Complete Revision]
  • standard by Process Industry Practices, 01/01/2017
  • Category: PIP

$150.00 $75.00

This Practice provides the requirements for equipment, materials, and design services for electrical heat trace systems that use parallel-trace self-regulating type heat trace cable with ground braid. This Practice includes requirements for heat trace cable, monitor-control panel, junction boxes, and temperature sensors. The following are not included in this Practice:

a. Series-resistance, mineral-insulated, inductance type, and impedance type heat tracing systems
b. Panelboards, circuit breakers, and field wiring of heat tracing system components
c. Installation of the equipment and materials provided
d. Insulation materials or installation
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
