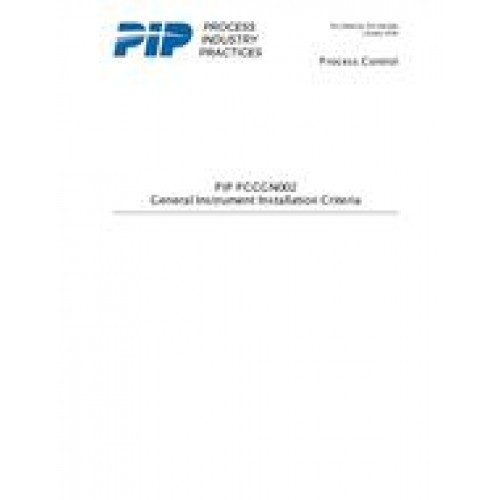

• PIP PCCGN002

PIP PCCGN002

  • General Instrument Installation Criteria [Complete Revision]
  • standard by Process Industry Practices, 01/01/2016
  • Category: PIP

$100.00 $50.00

This Practice provides installation criteria for instrumentation.
This Practice describes requirements for instrument identification, mounting location, instrument support, process connections, and environmental protection.
Comment: This Practice does not cover related requirements for the design and installation of instrument piping and tubing which are addressed in PIP PCCIP001 - Instrument Piping and Tubing Systems Criteria. This Practice also does not cover related piping and tubing material specifications which are addressed in PIP PCSIP001 - Instrument Piping and Tubing Systems Specifications.
Comment: This Practice does not cover related requirements for external grounding or power for instruments which are addressed in Process Industry Practices (PIP) documents under the responsibility of the Electrical Function Team.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
