• PIP PCIDP100

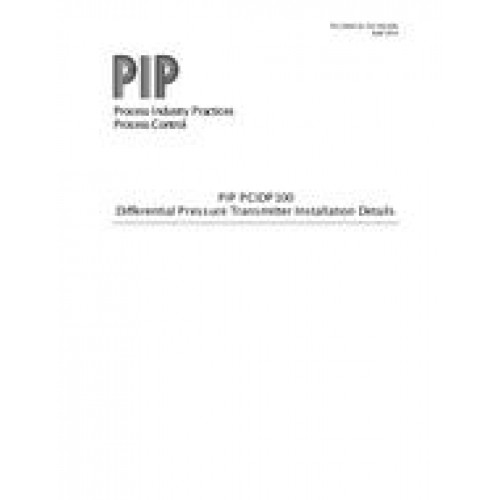

PIP PCIDP100

  • Differential Pressure Transmitter Installation Details [Technical Revision]
  • standard by Process Industry Practices, 04/01/2014
  • Category: PIP

$175.00 $88.00

This Practice provides details for the installation of differential pressure transmitters in liquid, gas, and steam services.

This Practice contains differential pressure installation details, including liquid, gas, and steam services and includes details for electric or steam tracing of these transmitters. These details describe the base instrument installations. The bill of material provided with each detail is generic and is complementary to PIP PCSIP001 - Instrument Piping and Tubing Systems Specifications.

PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
