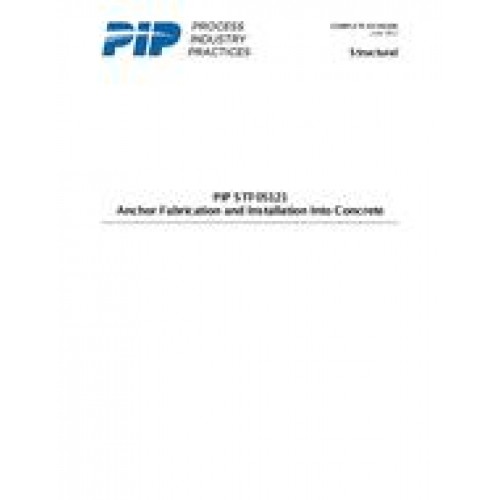

• PIP STF05121

PIP STF05121

  • Anchor Fabrication and Installation Into Concrete [Complete Revision]
  • standard by Process Industry Practices, 06/01/2017
  • Category: PIP

$160.00 $80.00

This Practice provides details and requirements for anchor fabrication and installationinto concrete. Anchors are anchor rod assemblies that include a rod threaded at the twoends, nuts, washers, and anchor plates and/or sleeves if required. J-bolts and L-bolts arenot included. Three standard lengths are shown for each diameter anchor rod in both U.S.Customary units and Metric (SI) units.
This Practice also provides requirements for non-standard anchor rod lengths.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
