• PIP VECSP001

PIP VECSP001

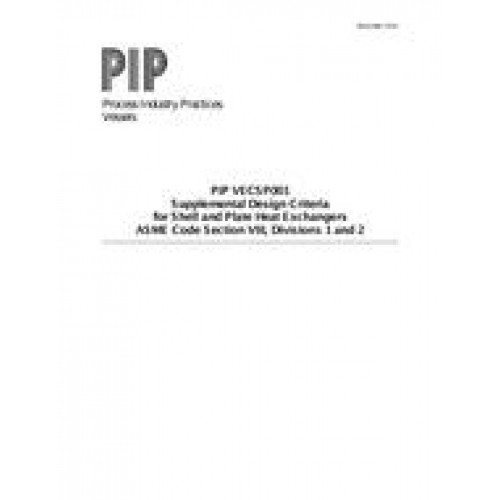

  • Supplemental Design Criteria for Shell and Plate Heat Exchangers ASME Code Section VIII, Divisions 1 and 2 [New Practice]
  • standard by Process Industry Practices, 11/01/2014
  • Category: PIP

$100.00 $50.00

This Practice provides requirements for use by a Purchaser for determining the design criteria for shell-and-plate heat exchangers constructed in accordance with ASME Boiler and Pressure Vessel Code, Section VIII, Division 1 or Division 2, henceforth referred to as the Code, TEMA Standards of the Tubular Exchangers Manufacturers Association, and PIP VECV1001. Requirements that are specific to Code, Section VIII, Division 2 are shown in braces { }. This Practice provides requirements for purchasing shell and plate heat exchangers that are to be designed and fabricated by a Manufacturer.For some heat exchanger purchases, certain requirements in this Practice and in PIP VECV1001 may be assigned by Purchaser to Manufacturer. The specific requirements assigned (e.g., thermal design and the performance rating) can be specified on Purchaser's PIP VEDSP003 Data Sheet.
This Practice describes the requirements for the design, materials of construction, inspection and testing of shell and plate heat exchangers constructed in accordance with Code, Section VIII, Division 1 {or 2} and PIP VECV1001. This Practice also provides guidance for the development of purchase specifications for the construction of new shell and plate heat exchangers which meet the philosophy and requirements of Code, Section VIII, Division 1 {or 2} and PIP VECV1001.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
