• PIP VEDBI003

PIP VEDBI003

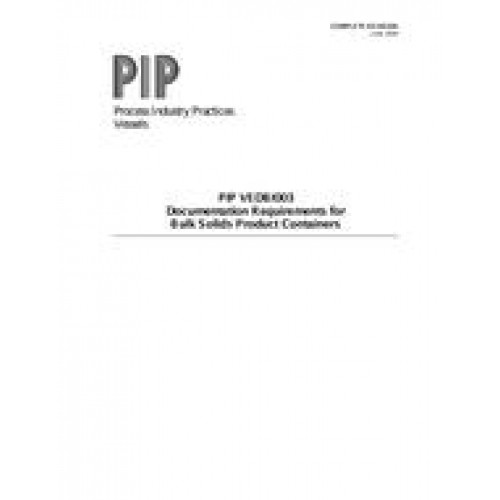

  • Documentation Requirements for Bulk Solids Product Containers [Complete Revision]
  • standard by Process Industry Practices, 06/01/2009
  • Category: PIP

$150.00 $75.00

This Practice provides data forms and the associated instructions for specifying requirements for dry bulk solids containers (bins, hoppers, silos, and gravity blenders).
This Practice contains three data forms for providing requirements for cylindrical shell, single-wall containers for dry bulk solids (i.e., bins, hoppers, silos, and gravity blenders) having internal design pressures not exceeding 15 psig (103 kPa) and/or full vacuum external pressure at the top of the container in its normal operating position, and are welded, shop- and field-fabricated, and generally in accordance with the philosophy and requirements of the ASME Boiler and Pressure Vessel Code, Section VIII, Division 1, henceforth referred to as the Code.
This Practice is required to be used with PIP VECBI001 and PIP VESBI002 to specify requirements, not otherwise specified, that are required by the Manufacturer to design and fabricate a bulk solids container.
This Practice also provides instructions to the Purchaser and the Manufacturer for inserting data and information in the three data forms.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
