• PIP VEFV2100

PIP VEFV2100

  • Vessels/S&T Heat Exchangers Miscellaneous Details
  • standard by Process Industry Practices, 06/01/2001
  • Category: PIP

$100.00 $50.00

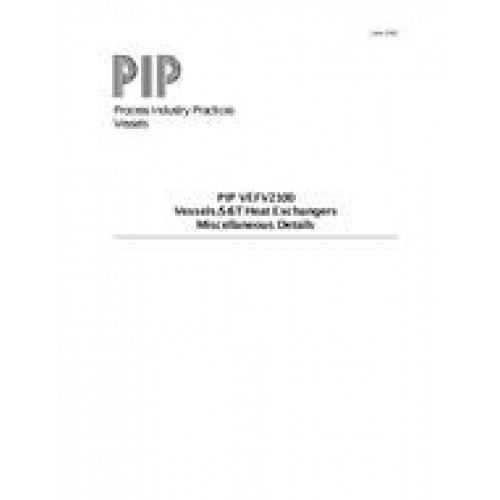

This Practice includes three standard details (nameplate brackets, tolerances, and grounding lugs) applicable to the fabrication and installation of vessels and shell-and-tube heat exchangers. Each detail is also assigned a PIP document number (VEFV1101 through VEFV1103) for ease of reference. These details are mandatory when referenced in other PIP Practices. Those not referenced may be used at the discretion of the Designer (when specified on the Data Sheet) or at the Manufacturer's option. The details cover the more common accessories attached to vessels and heat exchangers.
