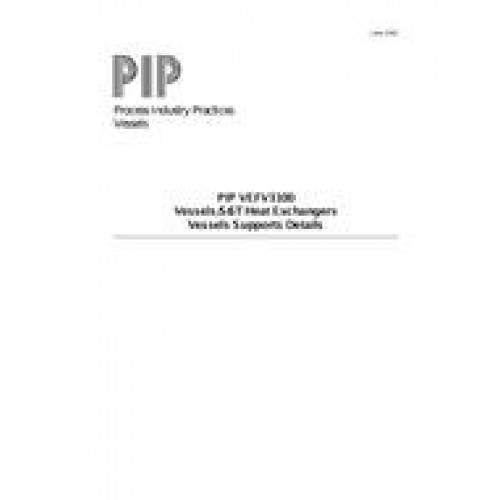

• PIP VEFV3100

PIP VEFV3100

  • Vessels/S&T Heat Exchangers Vessels Supports Details
  • standard by Process Industry Practices, 06/01/2001
  • Category: PIP

$425.00 $213.00

This Practice includes 14 standard details (vessels supports) applicable to the fabrication and installation of vessels and shell-and-tube heat exchangers. Each detail is also assigned a PIP document number (VEFV1104-1115, VEFV1120, VEFV1121) for ease of reference. These details are mandatory when referenced in other PIP Practices. Those not referenced may be used at the discretion of the Designer (when specified on the Data Sheet) or at the Manufacturer's option. The details cover the more common accessories attached to vessels and heat exchangers.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
