• SAE AS7459B

SAE AS7459B

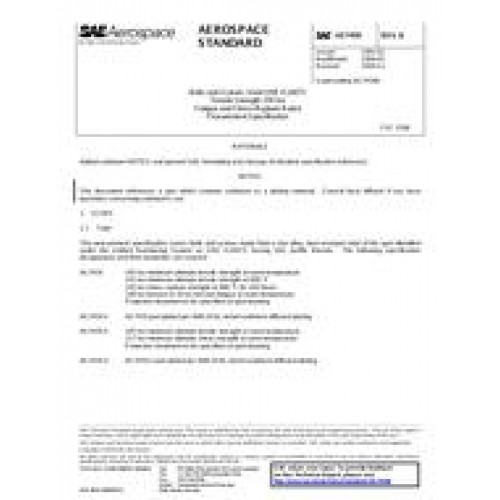

  • Bolts and Screws, Steel UNS K14675 Tensile Strength 195 ksi Fatigue and Stress-Rupture Rated Procurement Specification
  • standard by SAE International, 11/30/2009
  • Category: SAE

$81.00 $41.00

This procurement specification covers bolts and screws made from a low alloy, heat resistant steel of the type identified under the Unified Numbering System as UNS K14675, having UNJ profile threads. The following specification designations and their properties are covered: AS7459 195 ksi minimum ultimate tensile strength at room temperature; 145 ksi minimum ultimate tensile strength at 900 degrees F; 105 ksi stress rupture strength at 900 degrees F for 100 hours; 100 ksi tension to 10 ksi tension fatigue at room temperature; Protective treatment to be specificed on part drawing; AS7459-1 AS7459 part plated per AMS 2416, nickel-cadmium diffused plating; AS7495-2 195 ksi minimum ultimate tensile strength at room temperature; 117 ksi minimum ultimate shear strength at room temperature; protective treatment to be specified on part drawing; AS7495-3 AS7495-2 part plated per AMS 2416, nickel-cadmium diffused plating.

Primarily for aerospace propulsion system applications where high strength at temperatures up to approximately 900 \mDF is required and the part is protected against corrosion.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
