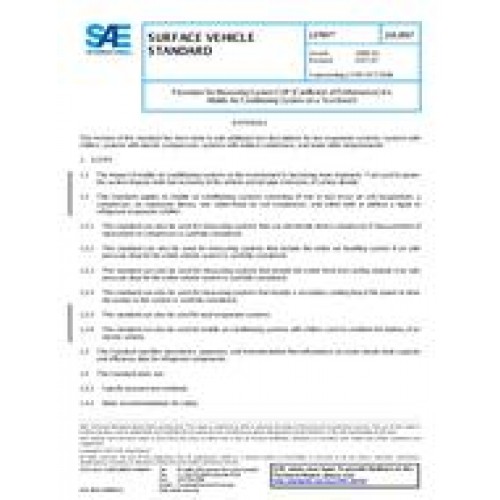

SAE J2765_201707

1.1 The impact of mobile air conditioning systems on the environment is becoming more important. Fuel used to power the system impacts both fuel economy of the vehicle and tail pipe emissions of carbon dioxide.

1.2 This Standard applies to mobile air conditioning systems consisting of one or two in-car air coil (evaporator), a compressor, an expansion device, one under-hood air coil (condenser), and either with or without a liquid to refrigerant evaporator (chiller).

1.2.1 This standard can also be used for measuring systems that use electrically driven compressor if measurement of input power to compressor is carefully considered.

1.2.2 This standard can also be used for measuring systems that include the entire air handling system if air side pressure drop for the entire vehicle system is carefully considered.

1.2.3 This standard can also be used for measuring systems that include the entire front end cooling module if air side pressure drop for the entire vehicle system is carefully considered.

1.2.4 This standard can also be used for measuring systems that include a secondary cooling loop if the power to drive the pumps in this system is carefully considered.

1.2.5 This standard can also be used for dual evaporator systems.

1.2.6 This standard can also be used for mobile air conditioning systems with chillers used to condition the battery of an electric vehicle.

1.3 This Standard specifies procedures, apparatus, and instrumentation that will produce accurate steady state capacity and efficiency data for refrigerant components.

1.4 This Standard does not:

1.4.1 Specify transient test methods,

1.4.2 Make recommendations for safety

1.4.3 Specify tests for production, specification compliance, or field testing of mobile air conditioning systems.

1.5 Purpose

1.5.1 This Standard provides a method of testing the capacity (performance) and efficiency (COP) of mobile air conditioning refrigerant systems under steady state conditions.
