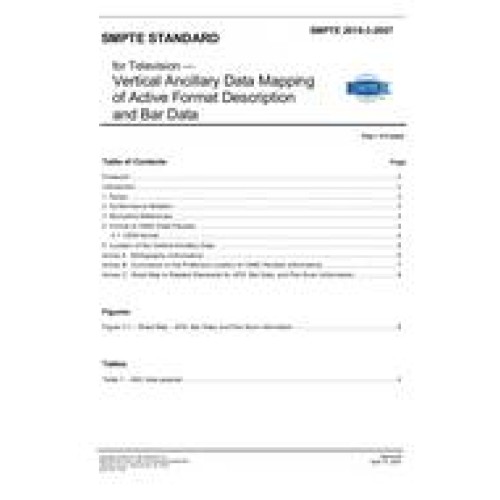

• SMPTE 2016-3-2007

SMPTE 2016-3-2007

  • Television - Vertical Ancillary Data Mapping of Active Format Description and Bar Data
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$38.00 $19.00

This Standard defines a method of coding that allows Active Format Description (AFD) and Bar Datainformation to be carried in the 10-bit vertical ancillary (VANC) data space of a standard definition or highdefinition component television signal. The standard defines how the AFD and Bar Data information is placedinto an ancillary data packet for carriage in accordance with SMPTE 291M.

An associated standard, SMPTE 2016M-1, defines the format for AFD and Bar Data and identifies the videoimage and interface standards with which it may be associated. Annex C shows the relationship among thestandards.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
