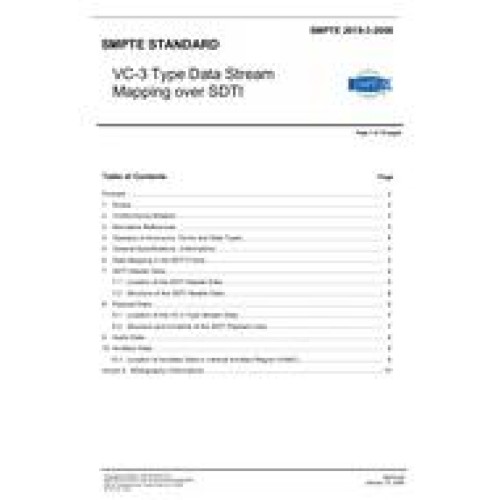

• SMPTE 2019-3-2008

SMPTE 2019-3-2008

  • VC-3 Type Data Stream Mapping over SDTI
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$50.00 $25.00

This document specifies the mapping of the VC-3 type compressed picture data stream into the SMPTE305M SDTI payload area. The VC-3 type compressed picture data stream mapping is defined for sourcecoded progressive 1080P picture rates of 25/P and 30/1.001/P, 720P picture rates of 50/P and 60/1.001/P,and for interlaced 1080I picture rates of 50/I and 60/1.001/I. VC-3 compression rates supported with thismapping are limited to the payload capacity of the 270 Mbps SDTI and are listed inTable 4.

For the transmission of compressed picture data coded at source picture rates of 25/P, 50/P and 50/I, theSDTI operates at a frame rate of 25Hz. For the transmission of compressed picture data coded at sourcepicture rates of 30/1.001/P, 60/1.001/P, and 60/1.001/I, the SDTI operates at a frame rate of 30/1.001 Hz.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
