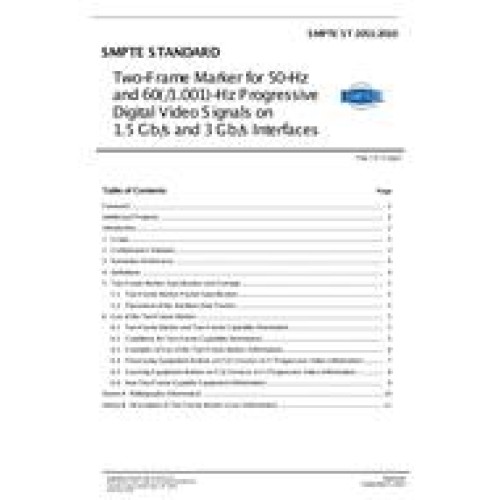

SMPTE 2051-2010
- Two-Frame Marker for 50-Hz and 60(/1.001)-Hz Progressive Digital Video Signals on 1.5 Gb/s and 3 Gb/s Interfaces
- standard by Society of Motion Picture and Television Engineers,
- Category: SMPTE
$75.00
$38.00
Two-Frame Marker for 50-Hz and 60(/1.001)-Hz Progressive Digital Video Signals on 1.5 Gb/s and 3 Gb/s Interfaces. This standard defines a Two-Frame Marker for progressive HDTV video formats at 50-Hz, 60/1.001(59.94)-Hz, and 60-Hz frame rates. This Two-Frame Marker is multiplexed into serial streams carrying such a video format to govern the alignment of system actions such as switching to the data block boundaries of embedded ancillary data services having one half the frame rate (Fr/2) compared to the video frame rate (Fr). Requirements for use of this Two-Frame Marker are also defined in this standard. Note1: Users should be aware that equipment manufactured prior to the publication of this standard typically will not comply with its requirements. Note2: Use of the Two-Frame Marker is optional with progressive video streams at 50-Hz, 60/1.001(59.94)-Hz, and 60-Hz frame rates mapped to interlaced serial interfaces at 25-Hz, 30/1.001(29.97)-Hz, and 30-Hz frame rates, respectively. Note3: Use of the Two-Frame Marker is optional with progressive segmented frame video streams at 25-Hz, 30/1.001(29.97)-Hz, and 30-Hz frame rates mapped to interlaced serial interfaces at 25-Hz, 30/1.001(29.97)-Hz, and 30-Hz frame rates, respectively.
PDF
All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.
Multi-User Access
After purchasing, you have the ability to assign each license to a specific user.
Printable
At any time, you are permitted to make printed copies for your and your members' reference use.
