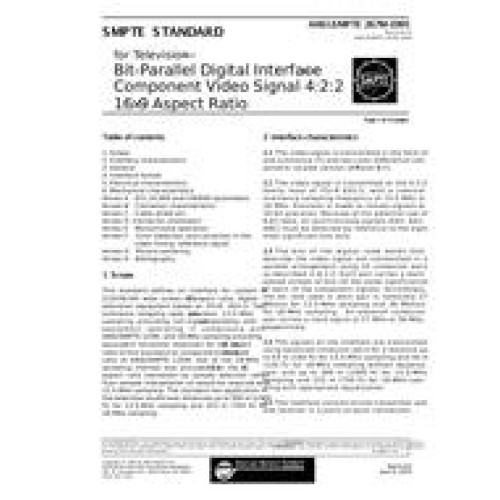

• SMPTE 267M-1995

SMPTE 267M-1995

  • Television - Bit-Parallel Digital Interface - Component Video Signal 4:2:2 16x9 Aspect Ratio
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$75.00 $38.00

This standard defines an interface for system M (525/59.94) wide screen, 16x9 aspect ratio, digital television equipment based on ITU-R 601-3. Two luminance sampling rates are provided, 13.5-MHz sampling providing full-signal compatibility with equipment operating in compliance with ANSI/SMPTE 125M, and 18-MHz sampling providing equivalent horizontal resolution for the 16x9 aspect ratio of this standard as compared to the 4x3 aspect ratio of ANSI/SMPTE 125M. Use of the 18-MHz sampling method also provides 16x9 to the 4x3 aspect ratio translation by sample selection rather than sample interpolation as would be required with 13.5-MHz sampling. The standard has application in the television studio over distances up to 300 m (1000 ft) for 13.5-MHz sampling and 225 m (750 ft) for 18-MHz sampling.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
