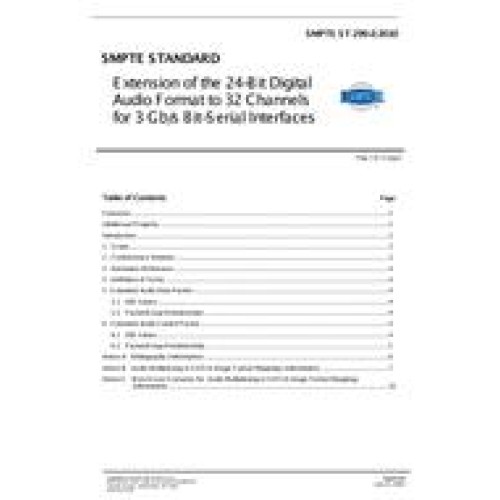

• SMPTE 299-2-2010

SMPTE 299-2-2010

  • Extension of the 24-Bit Digital Audio Format to 32 Channels for 3 Gb/s Bit-Serial Interfaces
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$75.00 $38.00

SMPTE ST 299-2 defines an SMPTE 291M Type 1 packet structure for identifying audio channels numbered from 17 to 32, beyond the 16 channels defined in SMPTE ST 299-1. Four extended audio data packets and four extended audio control packets are identified. One of the extended audio control packets and one of the extended audio data packets is assigned to transport each of the four extended audio groups . Each extended audio group has four channels that carry up to four 24-bit audio channels with 32, 44.1, or 48-kHz sample rates, or up to two 24-bit audio channels with 96-kHz sample rate. The purpose of defining four extended audio groups is to allow for multiplexing up to 32 audio channels into the horizontal ancillary (HANC) data space of the video source image formats mapped to a 3 Gb/s Level A serial data interface. The 3 Gb/s Level B serial data interface is capable of carrying 32 audio channels via application of SMPTE ST 299-1 to each of two 1.5 Gb/s SDI channels. The format and location of audio data and control packets in the video data stream is identical to that of SMPTE ST 299-1, except for differences required to define extended audio groups.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
