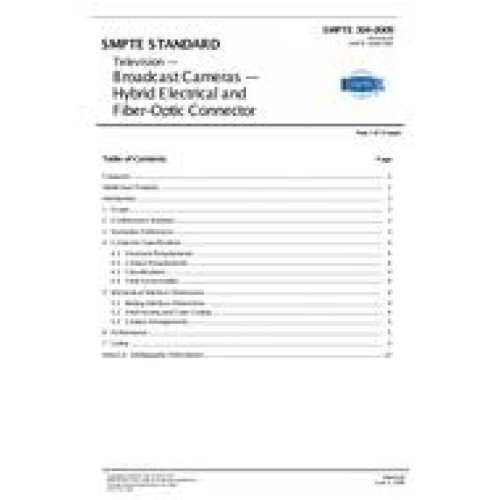

• SMPTE 304-2009

SMPTE 304-2009

  • Television - Broadcast Cameras - Hybrid Electrical and Fiber-Optic Connector
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$40.00 $20.00

This standard defines a connector primarily intended for use in television broadcasting and video equipment, such as camera head to camera control-unit connections. It defines hybrid connectors, which contain a combination of electrical contacts and fiber-optic contacts for single-mode fibers. It also contains dimensional tolerances which ensure nondestructive mating of the electrical and optical interfaces, and functional operability of the electrical interface. Functional operability of the optical interface is dependent upon fiber preparation and termination and is, therefore, not guaranteed by this standard.
The connector described in this standard is intended for use primarily with the hybrid fiber optic camera cable described in SMPTE 311; however, this connector may be used independently to meet other requirements.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
