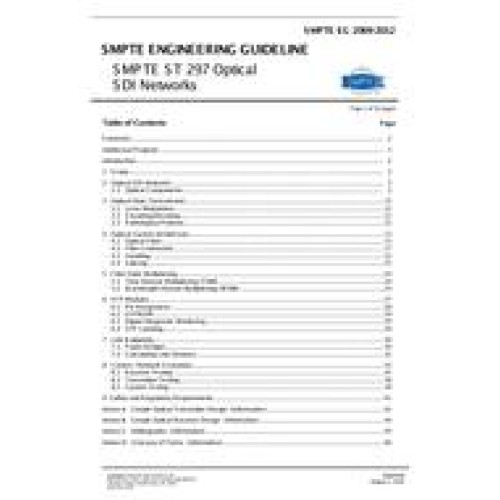

• SMPTE EG 2069:2012

SMPTE EG 2069:2012

  • Engineering Guideline SMPTE ST 297 Optical SDI Networks
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$150.00 $75.00

This engineering guideline provides guidance on the implementation of SMPTE ST 297 optical SDI networks in the following areas:
  • Network: Basics components of an optical network;
  • Multimode versus Single mode fiber;
  • Link budget - how to calculate, important factors;
  • Differences between Optical SDI interfaces and components and datacom interfaces and components;
  • Issues arising from the use of non-optimized ST 297 optical components;
  • Optical attenuators - why are they required and when to use them;
  • Optical isolators - why are they required and when to use them.
  • Evaluation of an optical system and its components: Test and measurement equipment;
  • Test and measurement methodology;
  • Important test parameters;
  • Ensuring interoperability
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
