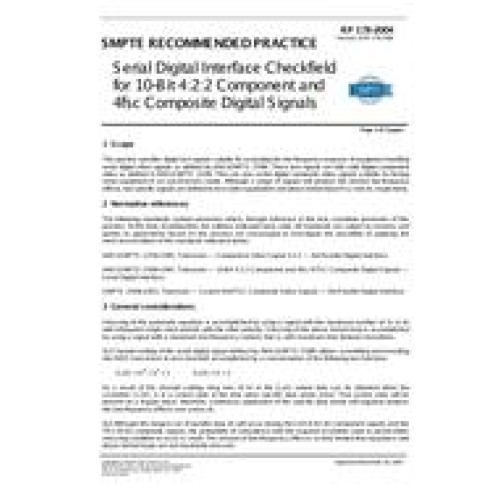

• SMPTE RP 178-2004

SMPTE RP 178-2004

  • Serial Digital Interface Checkfield for 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$50.00 $25.00

This practice specifies digital test signals suitable for evaluating the low-frequency response of equipment handling serial digital video signals as defined by ANSI/SMPTE 259M. These test signals are fully valid digital component video as defined in ANSI/SMPTE 125M. They are also useful digital composite video signals suitable for testing serial equipment in an out-of-service mode. Although a range of signals will produce the desired low-frequency effects, two specific signals are defined to test cable equalization and phase locked loop (PLL) lock-in, respectively.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
