• SMPTE RP 2006-2006

SMPTE RP 2006-2006

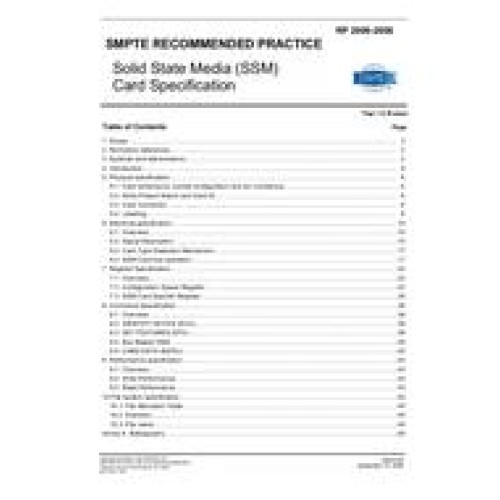

  • Solid State Media (SSM) Card Specification
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$100.00 $50.00

This document defines the specification of the Solid State Media (SSM) Card. The physical specificationprovides the physical characteristics of the Card and the connector. The electrical interface between a hostand the Card is a high performance bus and this document specifies the signal description, the electricalcharacteristics, and the bus operations. The register specification defines the registers for configuration andalso defines the specific registers related to interrupt signals or commands. The command specificationdefines the commands for the bus master data transfer and the sensing log information written in the SSMCard in addition to the ATA commands. To guarantee the performance of the SSM Card, requirements forwriting and reading speed are specified. The file system for the SSM Card is the FAT system.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
