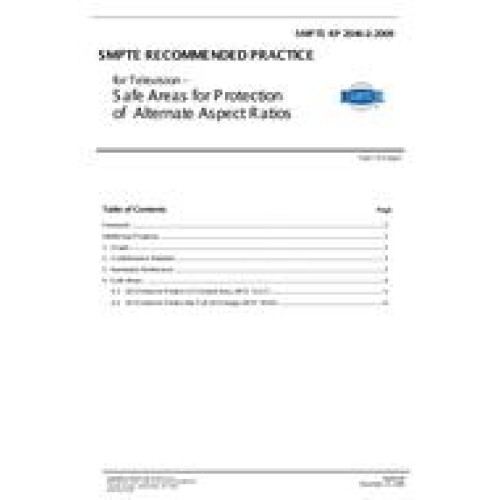

• SMPTE RP 2046-2-2009

SMPTE RP 2046-2-2009

  • Television - Safe Areas for Protection of Alternate Aspect Ratios
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$50.00 $25.00

This Recommended Practice specifies Safe Areas that should be used when composing 16:9 images that will be presented on both 4:3 and 16:9 aspect ratio displays. The choice of whether the image, having been captured in one aspect ratio, should be cropped for presentation in the other is dictated by creative and business factors. This Practice is intended to offer guidance on how best to compose the image once the presentation decision has been made.
The preferred display (cropped or not) should be signaled to downstream devices using Active Format Description (AFD) as defined in SMPTE 2016-1. The recommended Safe Areas are defined in the context of the AFD states in SMPTE 2016-1, primarily using the Safe Area and Safe Title Areas defined in SMPTE ST 2046-1.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
