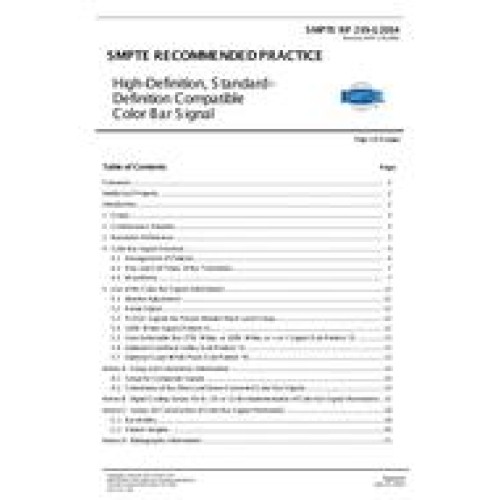

• SMPTE RP 219-1:2014

SMPTE RP 219-1:2014

  • High-Definition, Standard-Definition Compatible Color Bar Signal
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$120.00 $60.00

This practice specifies a color bar pattern compatible with both high- and standard-definition environments. The multi-format color bar signal originates as an HDTV signal with an aspect ratio of 16:9 and may be down-converted to an SDTV color bar signal with an aspect ratio of either 4:3 or 16:9.
The color bar signal is generated with unconventionally slow rise and fall time values, and is therefore only intended to facilitate video level control and monitor color adjustments of HDTV and SDTV equipment. It can be applied to HDTV video productions, especially in a multi-format environment where HDTV video sources are frequently converted and used as SDTV video content either in 525 or 625 environments with the same frame frequencies as in the original HDTV signal.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
