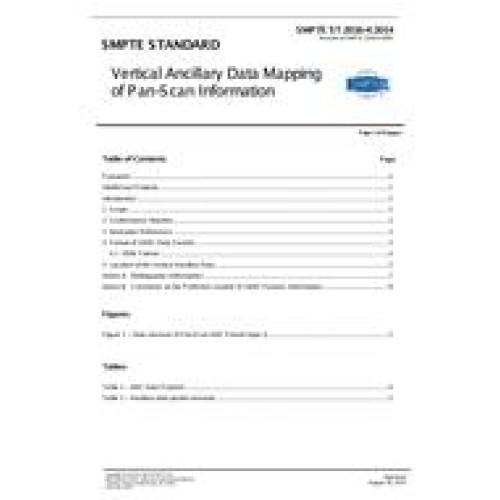

• SMPTE ST 2016-4:2014

SMPTE ST 2016-4:2014

  • Vertical Ancillary Data Mapping of Pan-Scan Information
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$80.00 $40.00

This Standard defines a method of coding that allows Pan-Scan information to be carried in the 10-bit vertical ancillary (VANC) data space of a standard definition or high definition bit-serial component television signal. The standard defines how the Pan-Scan information is placed into an ancillary data packet for carriage in accordance with SMPTE ST 291-1.
An associated standard, SMPTE ST 2016-2, defines the format for Pan-Scan information and identifies the video image and interface standards with which it is associated.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
