• SMPTE ST 2036-3:2012

SMPTE ST 2036-3:2012

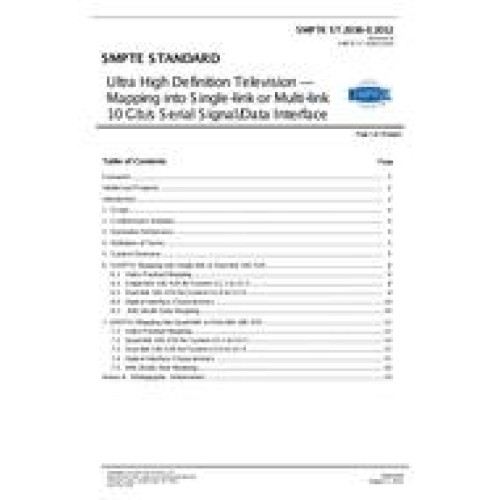

  • Ultra High Definition Television - Mapping into Single-link or Multi-link 10 Gb/s Serial Signal/Data Interface
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$120.00 $60.00

This document is Part 3 of SMPTE ST 2036 and describes UHDTV1, 2 image mapping into a Single-link or a Multi-link 10 Gb/s Serial Signal/Data Interface (10G-SDI) Mode D defined in SMPTE ST 435-2.
The source UHDTV (Ultra High Definition Television) image sample structures for the interface are defined in SMPTE ST 2036-1 and are listed in Table 1. UHDTV has an image format (sample structure) of 3840 ? 2160 (UHDTV1) or 7680 ? 4320 (UHDTV2).
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
