• SMPTE ST 2036-3:2015

SMPTE ST 2036-3:2015

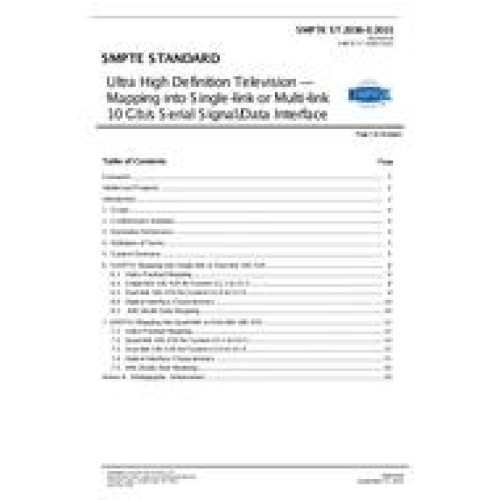

  • Ultra High Definition Television - Mapping into Single-link or Multi-link 10 Gb/s Serial Signal/Data Interface
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$120.00 $60.00

This document defines UHDTV video payload mapping into Single-link, Dual-link, Quad-link or Octa-link 10G-SDI Mode D defined in SMPTE ST 435-2. This document also defines mapping of ANC, Audio Data, payload ID and other ancillary data formatted as defined in SMPTE ST 291-1. The ?Basic Stream? complies with the interleaved data stream defined in SMPTE ST 292-1 and is utilized as the input source stream s for the 10G-SDI.
When transporting UHDTV1,2 signals through a single single-mode fiber, WDM (Wavelength Division Multiplexing) or DWDM (Dense Wavelength Division Multiplexing) as defined in Section 6.4 and Section 7.4 may be used.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
