• SMPTE ST 2081-10:2015

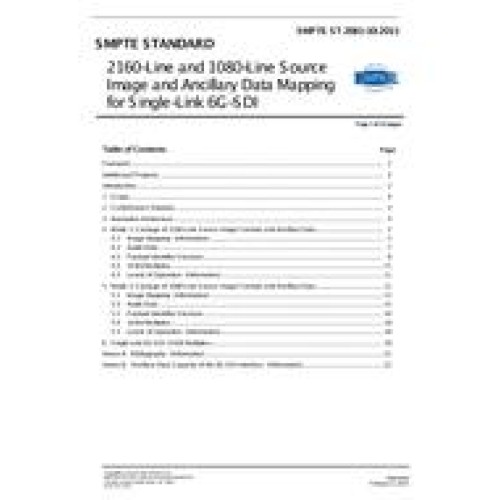

SMPTE ST 2081-10:2015

  • 2160-Line and 1080-Line Source Image and Ancillary Data Mapping for Single-Link 6G-SDI
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$120.00 $60.00

This Standard defines the mapping of:
  • Mode 1: 2160-line Source image formats identified in Table 1 into a Single-link 6 Gb/s [nominal] SDI bit-serial interface
  • Mode 2: 1080-line Source image formats identified in Table 6 and into a Single-link 6 Gb/s [nominal] SDI bit-serial interface
This Standard also defines the carriage of ancillary data, and the SMPTE ST 352 payload ID?s for the Single-link 6 Gb/s SDI interface.
It is not necessary for implementations to include support for all operating modes or image formats that are included in this standard. Implementers should indicate supported operating modes and image formats in commercial publications.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
